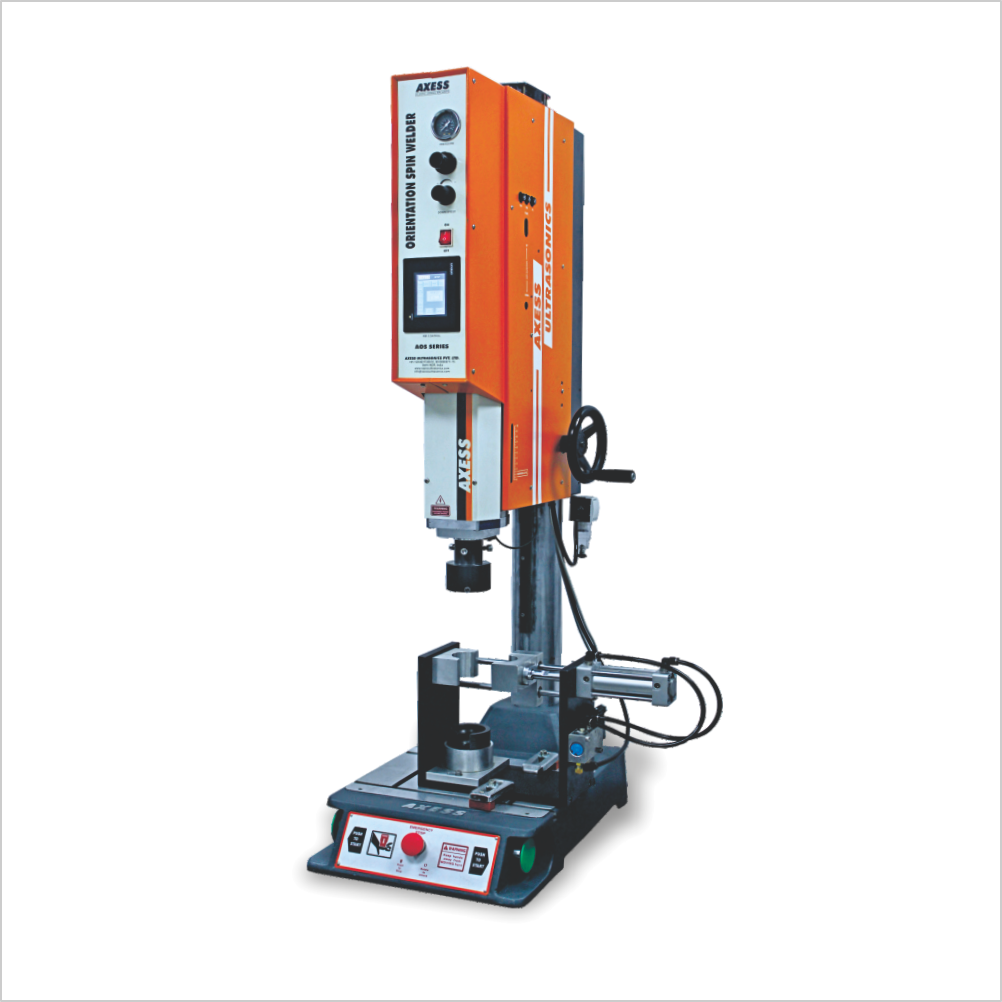

Spin Welding Machine AOS150P
Rs.390,000
(Taxes to be paid extra)
Model: AOS-150
Condition: New
Min Order Qty: 1 Unit
Download CatalogueSend Enquiry
Applications: These machines are suitable for automotive filters, RO water purifier, small filters, water jug and Round Work pieces.
Principle: Spin welding is a process that joins circular thermoplastic parts by bringing the part interface together, under pressure, with a circular, spinning motion. One part is held stationary in a fixture, while the other is rotated against it under pressure. The frictional heat that is generated by friction causes the part interface to melt and fuse together, creating a strong, hermetic seal.
Orientating machines can work like standard spin welding machine as well as for the application in which upper part needs to be stopped at a fixed position or an angle after welding.
Reduction gear box used in all Axess Spin Welding Machines to make long life of motor and to increase torque.
In stock
Description
Technical Specification of Model AOS-150P |
|
| Dimension L x W x H | 440mm x 690mm x 1500mm |
| Weight | 120 Kg (Approx) |
| Input Voltage & Power | 220V, 1 Phase/1.5 KW |
| Motor and RPM | 1.5 KW, 3000RPM (OMRON) |
| HMI | 4.3’’ (OMRON) |
| Welding Mode | Time/Rotation/Depth |
| Air pressure req. | Up to 6 Kg/cm square |
| Productivity | 8-15 Operation/minute |
| Auto/manual | Both operation |
| Operation Mode | Timer/RPM/Depth |
Range
| Particular | Model | Output |
|---|---|---|
| Orientating Spin Welder | AOS-0150 to AOS-1000 | 1.5 KW to 10 KW |
