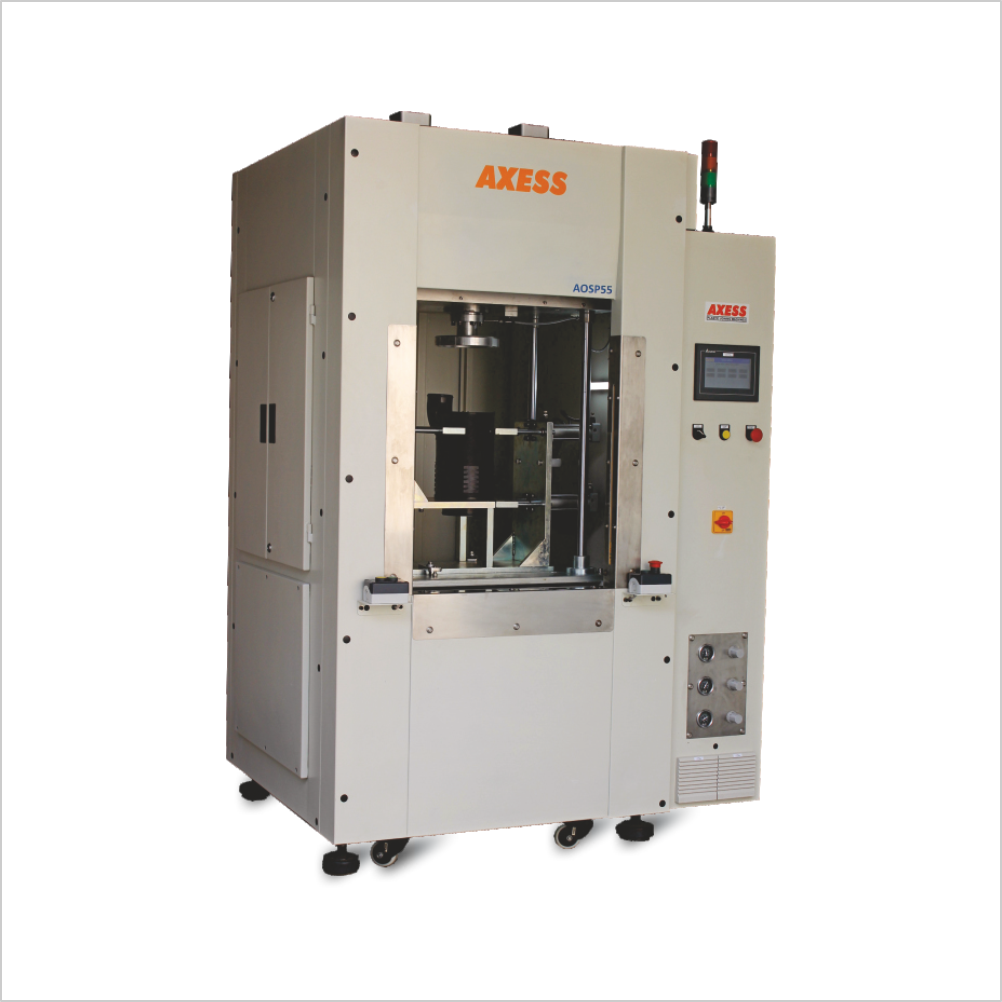

Spin Welding Machine AOS-550P
Rs.390,000
(Taxes to be paid extra)
Model: AOS-550
Condition: New
Min Order Qty: 1 Unit
Download CatalogueSend Enquiry
This machine is suitable for big Engineering parts such as casserole, thermos, filters and more. This machine contains: Air reservoir, Safety curtain sensors, extra Pneumatic circuit for duel cylinder fixture, Reduction Gear Box.
In stock
Description
Technical Specification of Model AOS-550P |
|
| Dimension L x W x H | 1352mm x 1170mm x 2050mm |
| Weight | 1300 Kg (Approx) |
| Input Voltage & Power | 210V, 3 Phase |
| Servo Motor | 5.5 KW |
| Reduction Gear Box | 5 Ratio (Japanese) |
| Controls | 7″ Touch Screen Colour HMI |
| Air Pressure Req. | Up to 7 Kg/cm square |
| Productivity | 8-15 Operation/minute |
| Auto/manual | Both operation |
| Welding Dia Size | up to Dia 200 |
