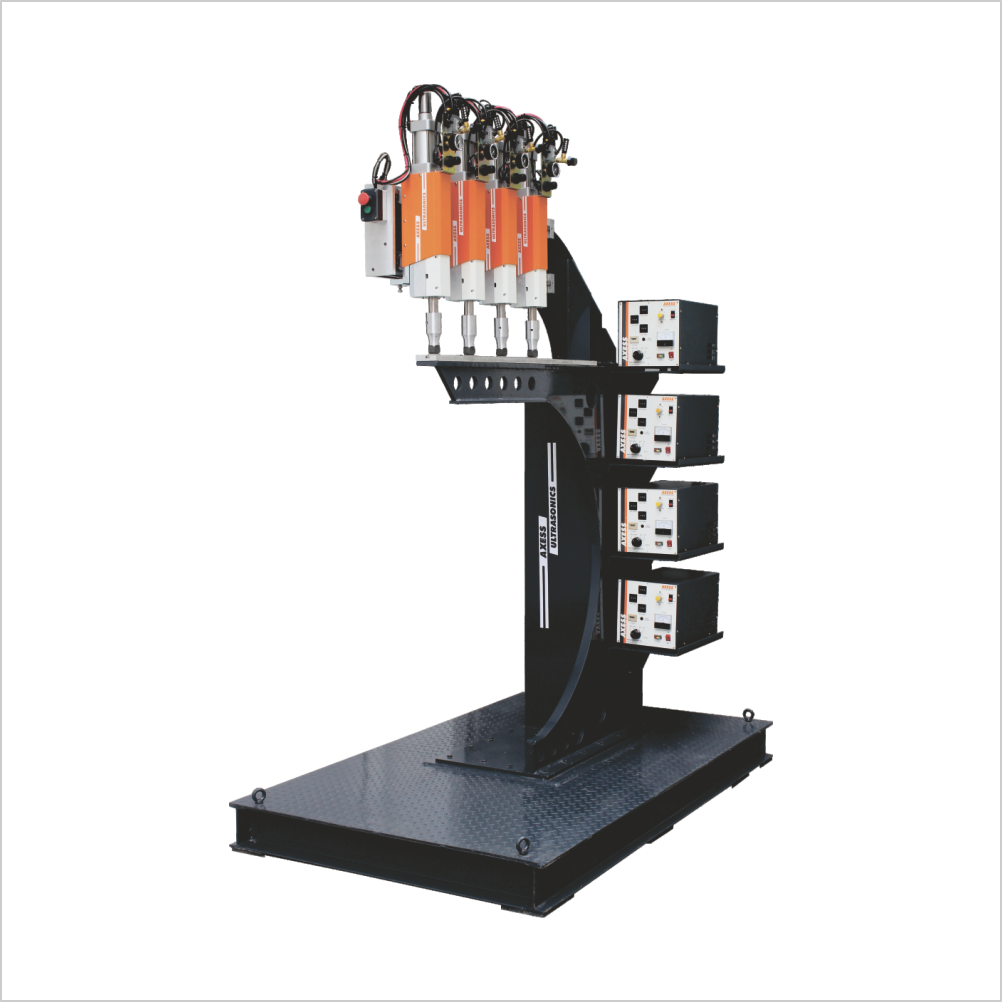

Ultrasonic PP Corrugated Box Welding Machine
Rs.255,000
(Taxes to be paid extra)
Model: ACW2015PPB
Condition: New
Min Order Qty: 1 Unit
Download CatalogueSend Enquiry
This machine is specially developed by Axess for manufacturing the PP Corrugated box. This machine can weld one or two welding spot together which make it production friendly. Axess can design frame of the machine as per customer specification like Multi Head fixed or movable.
In stock
Description
These machine are specially developed by AXESS for manufacturing the Ultrasonic PP Corrugated (Multi Head Ultrasonic PP Corrugated Box Welding Machine). These machines can weld one or two welding spot together which make it production friendly. AXESS can design frame of the machine as per customer’s specification or requirement eg. Multi Heads are fixed or movable. New frame developed by AXESS are very robust and user friendly. Axess Ultrasonic system which are used in these machines are already proven in the industry. All components used in these machines are of high standard quality.
| Range | ||||
| Model | Output | Welding Thick | ||
| AW2015PPB | 20 KHz, 1500 W, Single Tip | up to 15mm | ||
| AW2025PPB | 20 KHz, 2500 W, Single Tip | up to 15mm | ||
Small Corrugated Box Welding Machine
These high speed machines are specially developed by AXESS for manufacturing the small PP Corrugated boxes, in which two spots can be welded, at a fixed position, at the same time.
Small Corrugated Box Welding Machine Technical Specifications |
||||
| Output / Frequency | 2.8Kw 15 KHz | |||
| Capacity | 10 -15 welding stroke/ minute | |||
| Weight | 320 Kg (approx) | |||
| Dimensions (mm) | L-1350 x W-500 x H-1950 | |||
