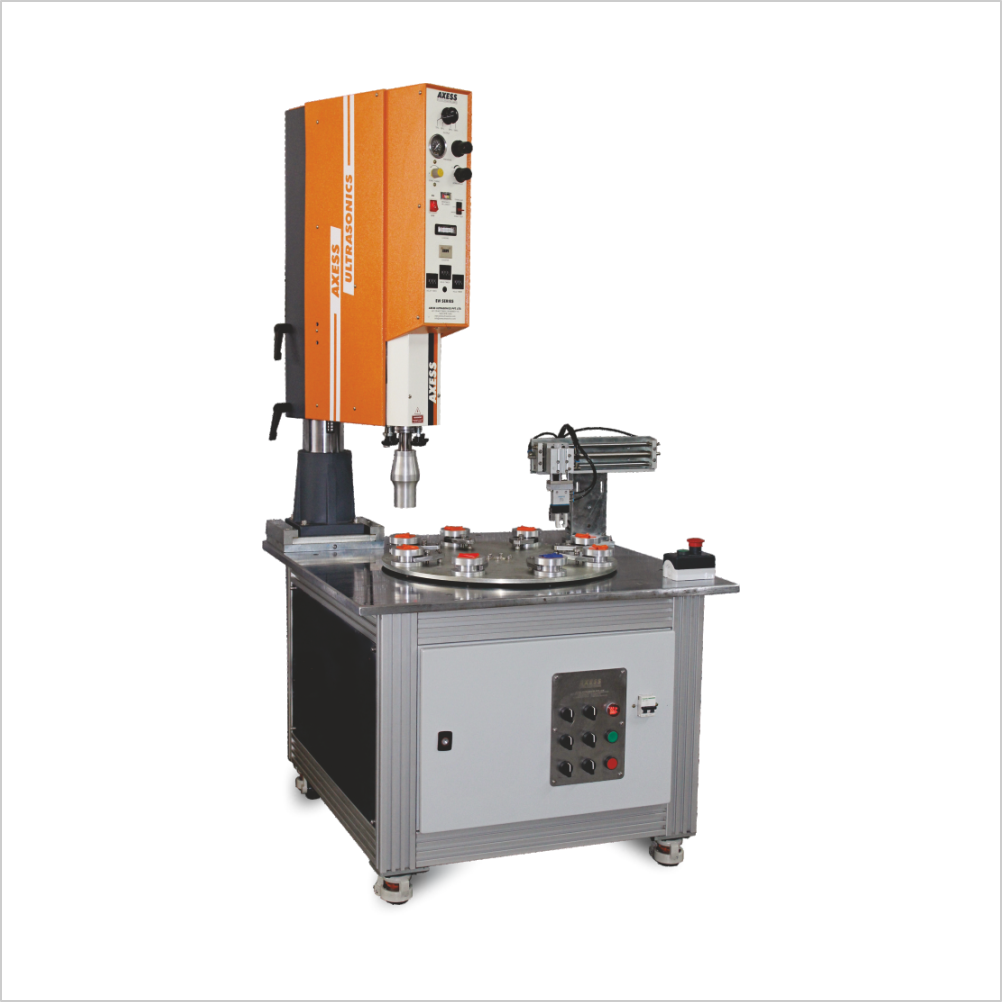

Rotary Table Ultrasonic Plastic Welder

This machine is specially developed by AXESS for whom their production rate is very high but they wants to save labor and time.
This machine’s rotary system is very robust combination of mechanical Index System, Motor and reducing gear box.
Machine can be designed with desired station and desired wattage Ultrasonic system as per customer requirement.

Key features:
* Variable speed
* Auto ejection
* Choice of station 4, 8 or 16
* Stroke length 75mm or can be customize (25mm~100mm) ultrasonic system as per requirement.

Description

Rotary Indexing Table With Ultrasonic Technical Specification
Dimension L x W x H	1220mm x 1030mm x 1680mm
Weight	300 Kg (Approx)
Input Voltage &Power	220V, 2 KW, single phase
Air pressure req.	Up to 5 Kg/cm square
Ultrasonic System	As per application
AC Drive	0.5~1.0Kw with speed controller
Indexing System	8 station (can be customized)
Productivity	15-30 stroke/minute
Auto/manual	Both operation
Unloading System	Pneumatic/Pick-Drop (optional)
